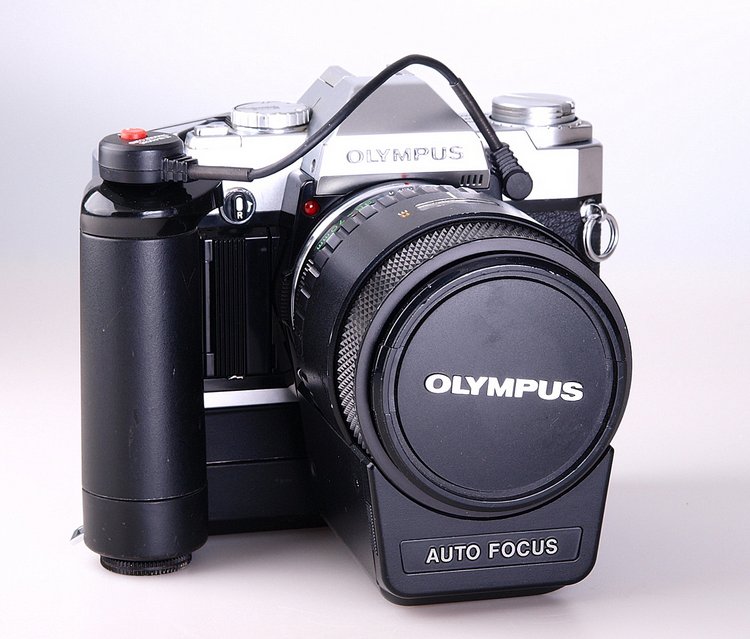

Type : TTL auto-exposure 35mm camera with built-in Zero-in Focus system.
Format : 24x36mm
Lens mount : Olympus OM mount. ( with contact for auto focus lens ).
Shutter : Electronically controlled cloth focal plane shutter ; 1/1000 sec max shutter speed.
Synchronization : X contact ( synchronization at speeds of 1/60 sec or slower ) hot shoe with contact for T-series Flash.
Auto exposure control : Automatic exposure control by TTL Direct “of-the-film” Light Measuring with aperture-preferred electronic shutter. Exposure control range : about 2 sec ~ 1/1000 sec ( approx . 0 EV ~ 18 EV at ISO 100 , 50mm F1.4 lens .normal temperature and humidity ) ± 2 EV exposure compensation.
Manual exposure control : B, 1 sec ~ 1/1000 sec. (Flash synchronization at speeds of 1/60 or slower.
Auto focus mode : Touching the release button sets the lens focus instantly with an electronic beep ( when using the AF zoom lens ) .
Focus-aid mode : By rotating lens focusing ring while watching LEDs Beeper emits a ton when in focus ( when using the regular OM-system Zuiko lens )
Flash operation : Direct contact for normal Auto Flash ( automatic X synch with T-series Flash )
Film speed : ISO 25 ~ 1600.
Film advance : Film advance lever with 130 º angle for one long or several short strokes and pre-advance angle 30º: motor drive and winder usable.
Viewfinder : Pent prism type . Wide field finder with central micro prism / split-image range finder ;finder view-field : 93% of actual picture-field ; magnification : 0.92 x at infinity with 50mm lens.
Viewfinder information : LED multi-mode display ( 90sec limiter ) .
Self timer : 12 sec delay electronic self-timer.
Battery check : 3-leveldisplay with LED and alarm sound.
Power source: Five 1.5 volt alkaline manganese batteries LR 44 or silver oxide batteries SR 44. ( Eveready EPX-76 )
Camera back : Hinge type with memo holder.
Dimensions : 135x 84 x 50mm. (body alone)
Weight : 430 grams ( body only ).

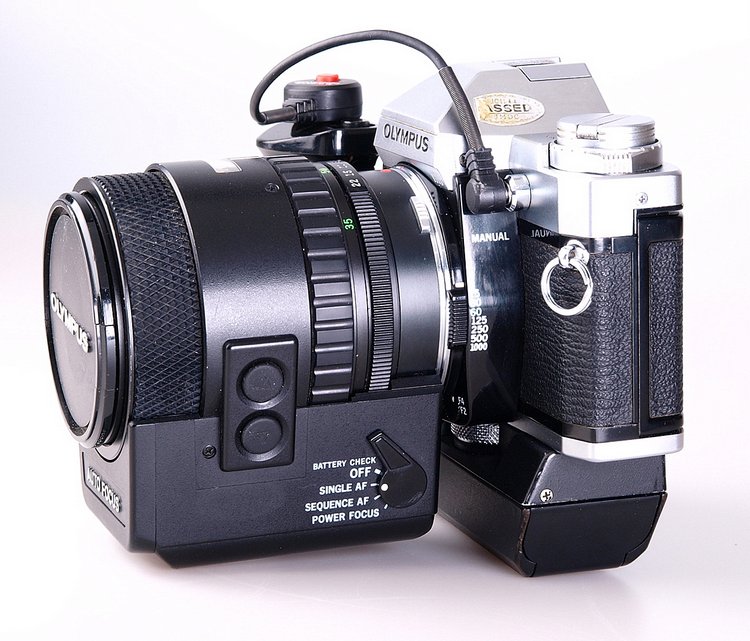

The world’s first auto focus lens with a built-in TTL focus detecting system. The lens microcomputer instantly calculates the optimum focus from data supplied by the CCD sensor , and sets it automatically. A built-in prism splits the light coming through the lens and sends part to the focus detector array at the base of the lens. Together with the OM-30 , this lens offers fast accurate and convenient “one touch” auto focus” . It can also be used as a TTL auto focus lens with any OM camera. There are five operational modes : Single Mode (focuses and locks on the subject ). Sequence Mode ( focus continually adjusts as long as the button is pressed ) ; Power Focus Mode ( manual power focusing ) ; OFF-Mode ( for manual focus settings ) ; and battery check mode ( with electronic tone ). The precise focus action is far quicker than the manual focusing , opening up new possibilities , for example , in the following fast moving subjects with motor drive .

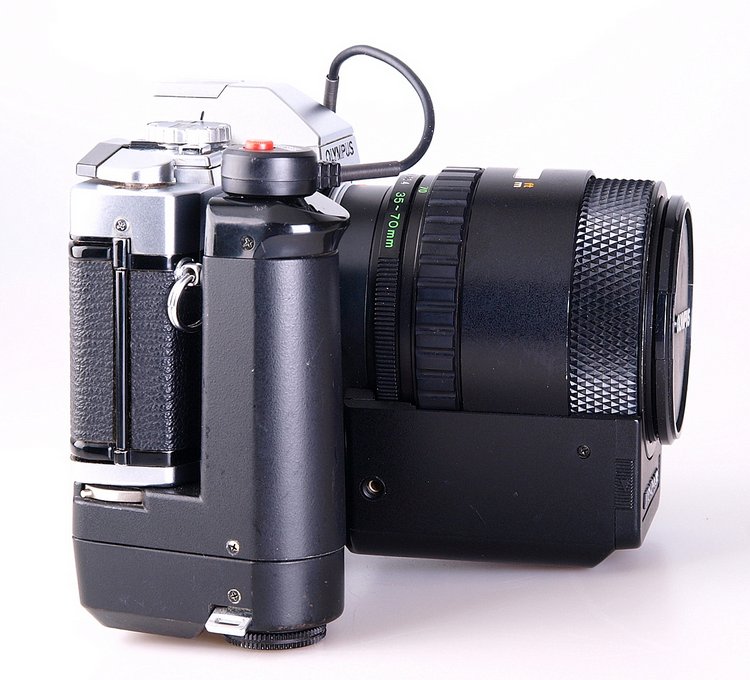

Zuiko Zoom 35-70mm F4 autofocus lens.
Angle of view : 63 º ~ 34º.
Optical construction : 9 elements in 8 groups.
Diaphragm operation : Automatic.
F–stop range : 4~32.
Minimum focus : 0.75m ( 2.5 ).
Minimum field size : 48 x 72cm ( 18.9 x 28.3 ) ~ 24 x 36cm ( 9.4 x 14.2 )
Focusing : Rotating helicoids.
Zooming : Rotating zoom ring.
Weight : 550 grams ( 19.4 )
Length : 77mm ( 3.0 )
Maximum diameter : 70mm ( 2.8 )
Filter size : 55mm.Ø screw-in.
Notes : The auto focus system will not operate in the following cases; when an extension tube or tele converter is mounted between the lens and camera body. When a special filter as a polarizing filter, cross filter or infrared filter is used.

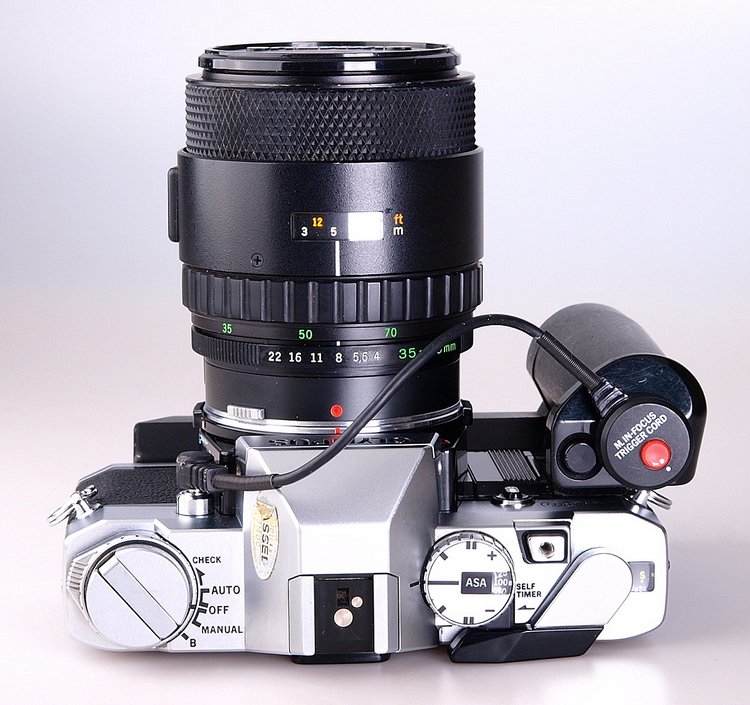

- In-focus trigger cord . With the OM-30 motor drive or winder and In-focus trigger cord ,this lens will wait until a subject comes into clear focus before taking the shot.
Suitable focusing screens : 1-1,1-2,1-3, 1-4, 1-5, 1-6, 1-10, 1-13 and 1-14.
