€220.00
The built-in shift mechanism moves the lens parallel to the film plane fore compositions free of perspective distortion. A ideal lens fore precise architectural photography, studio and composite panoramic photography.
Angle of view : 63 º (max 83 º with 62mm image circle).
Shift : 10,4mm laterally 12mm rising and 13mm falling.
Optical construction : 8 elements in 7 groups.
Diaphragm operation : Manuel.
F-stop range : 2.8—22.
Minimum focus : 0,3m (11,8in)
Minimum field size: 14x21cm ( 5,5 x 8,3 in )
Focusing : Straight helicoids.
Weight : 310 grams ( 10,9 oz)
Length : 59mm (2.3 in)
Maximum-diameter : 68mm (2,7 in)
Filter size : 49mm.
Suitable focusing screens : 1-4 and 1-10.
In stock

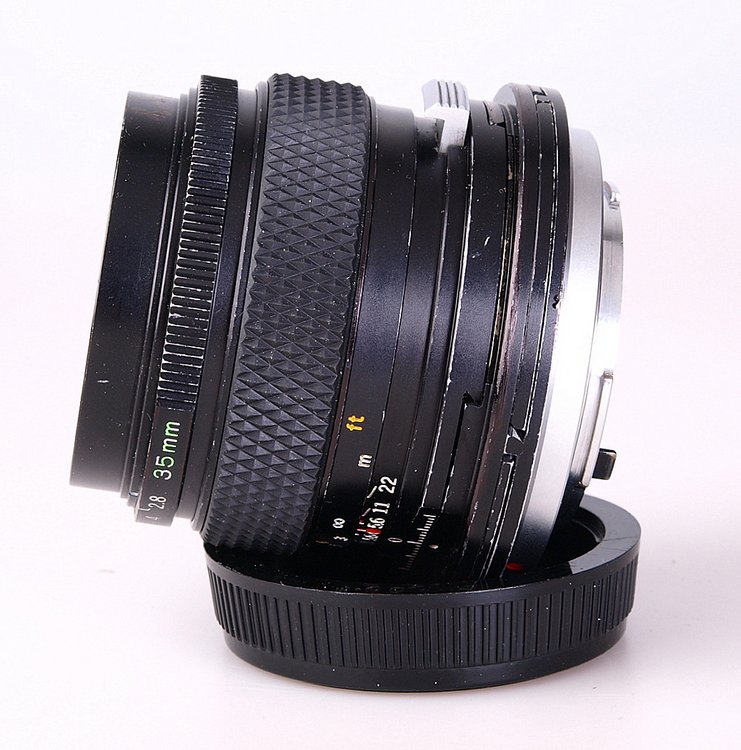

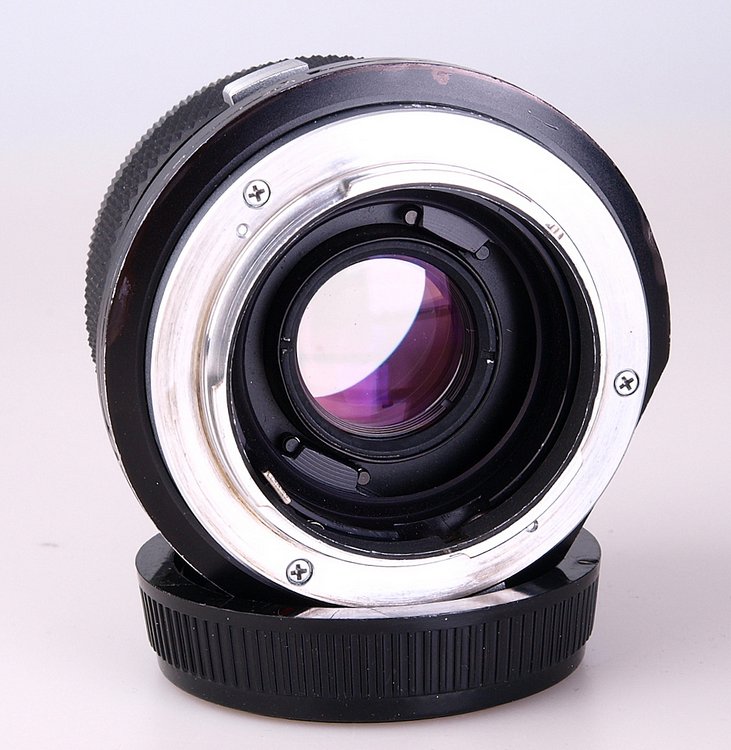

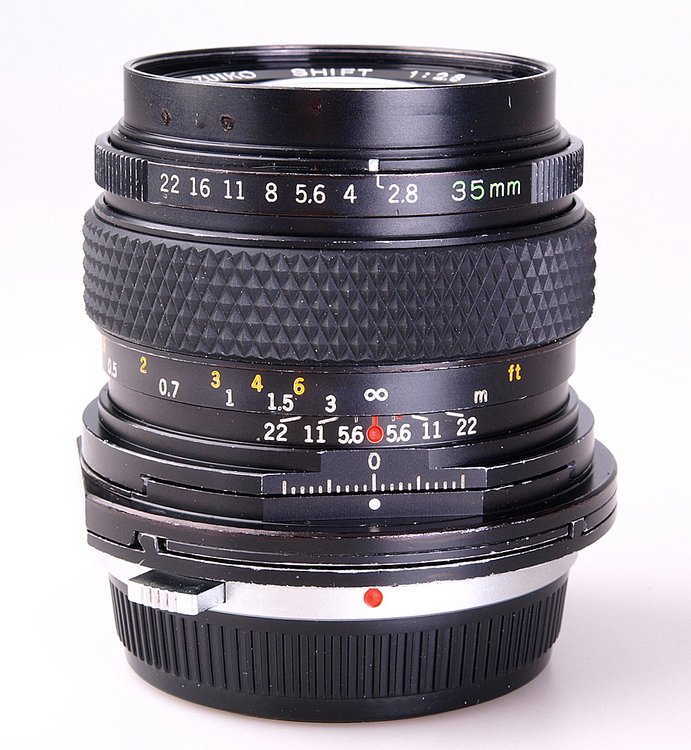

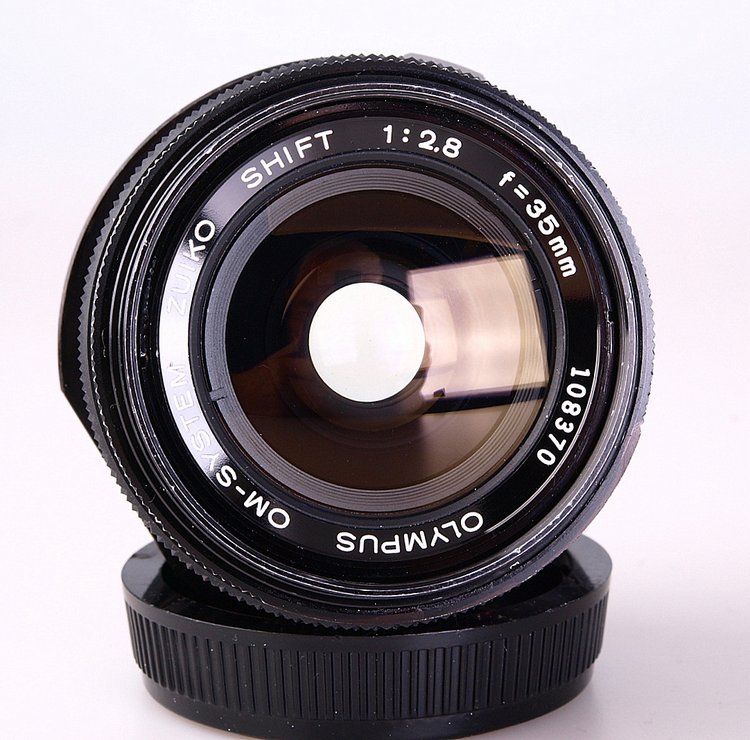

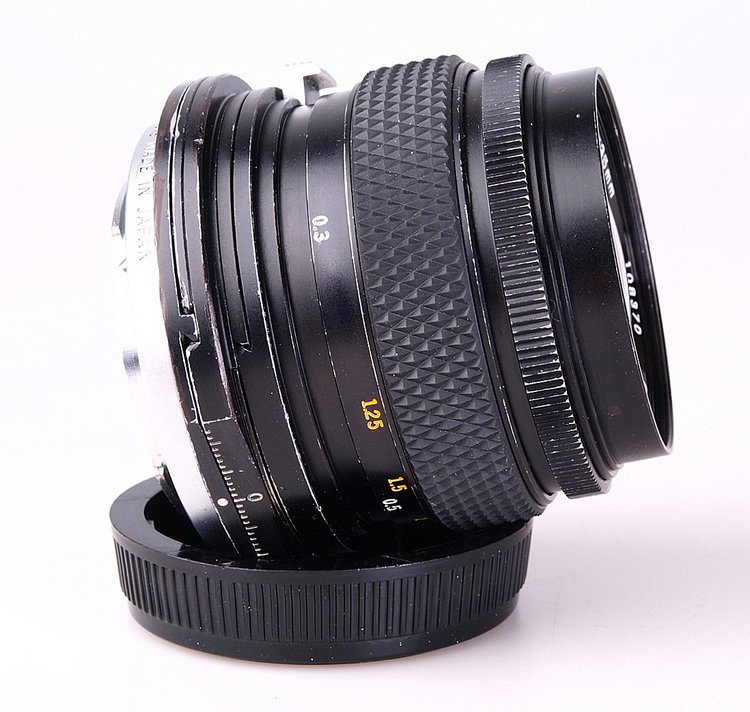

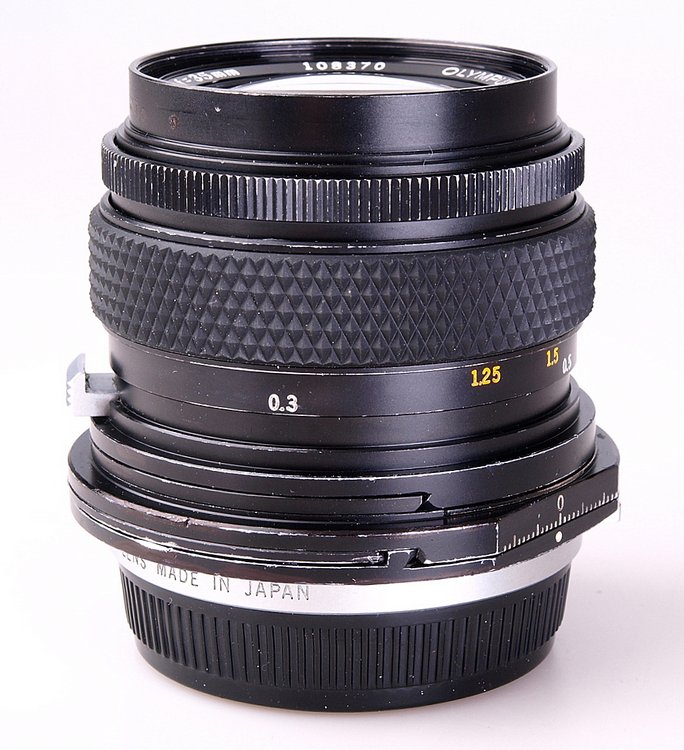

Condition exterior : A lens with medium users wear (pictures are a part of the description.)
Condition : The shift mechanism is working well, Optical and mechanical in good condition.
Number : 108370
Focusing : Fine as it should be.
Bayonet : OK , normal users wear
Filter mount : no dents, some paint wear
Glass : Clean, no fungus , no marks no separation.
Front , back cap .
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 15 cm |
| Condition exterior | |
| Condition mechanical | |
| Condition optical |
