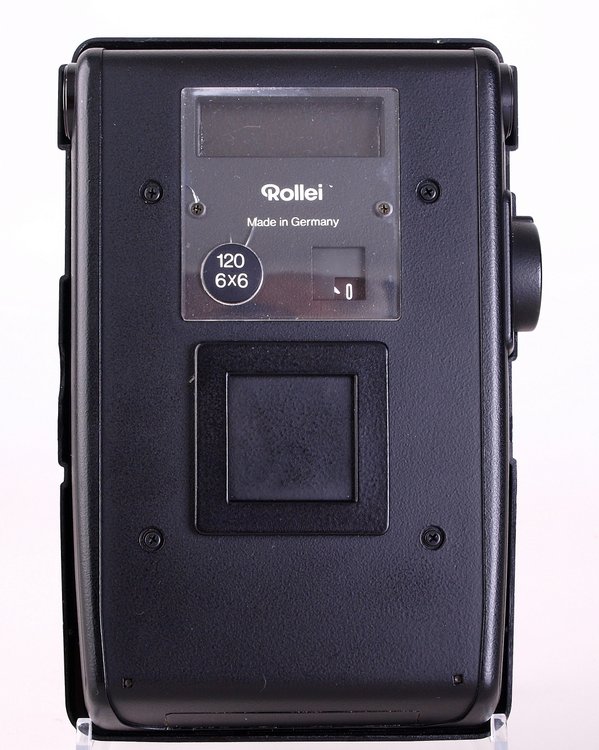

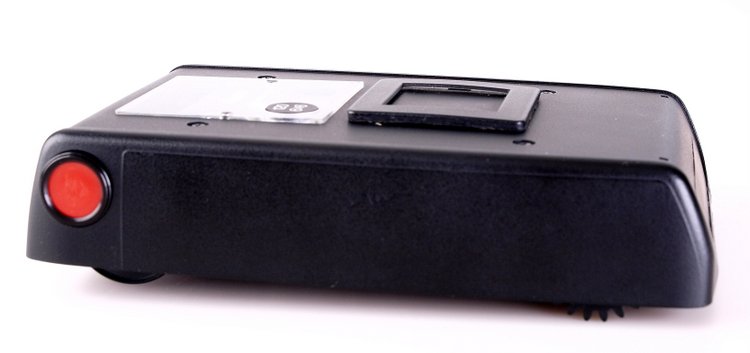

Rolleiflex SLX 6×6 film holder with insert. (hinged back). 120 6x6cm

The Rolleiflex SLX does not feature a fully detachable, mid-roll interchangeable film magazine with a built-in dark slide (unlike the later 6006 and 6000-series models). Instead, it utilizes a hinged camera back combined with interchangeable film inserts.

Here are the complete technical specifications for the Rolleiflex SLX film handling options:

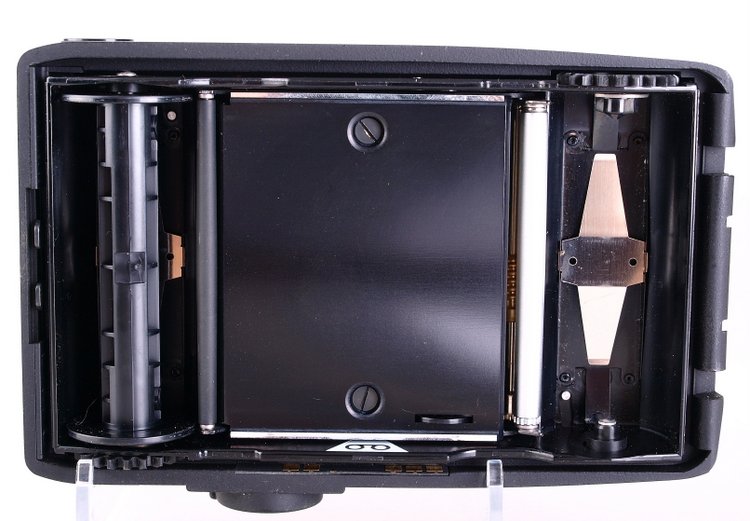

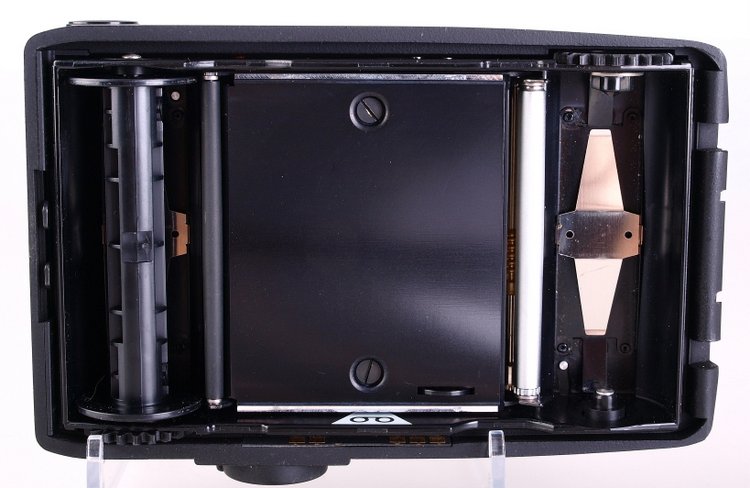

Standard Film Insert

The standard insert is loaded externally and slides directly into the camera’s hinged rear door.

Film Type: Accepts both 120 and 220 roll film. Switching between formats is done via a mechanical dial on the back of the camera door.

Frame Format: 6×6 cm (actual image size is approximately 56×56 mm).

Frame Count: 12 exposures on 120 film / 24 exposures on 220 film.

Film Advance: Fully motorized and automatic. The camera automatically advances to the first frame after loading and winds the paper tail completely after the last shot.

Dimensions & Weight: The individual insert weighs approx. 113g   and measures 12.7 × 8.3 × 3.2 cm.
