Description
Condition:
Optical : clean inside no mold no marks.
Mechanical: All works as it shoold do, no damage on the outside.
€210.00

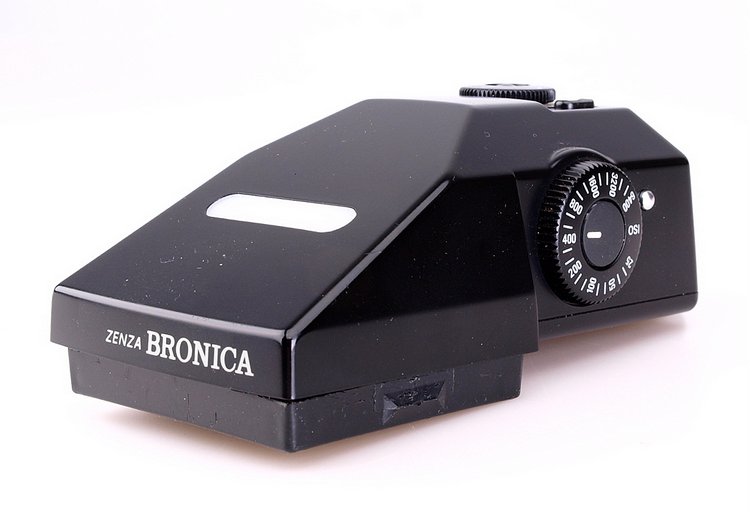

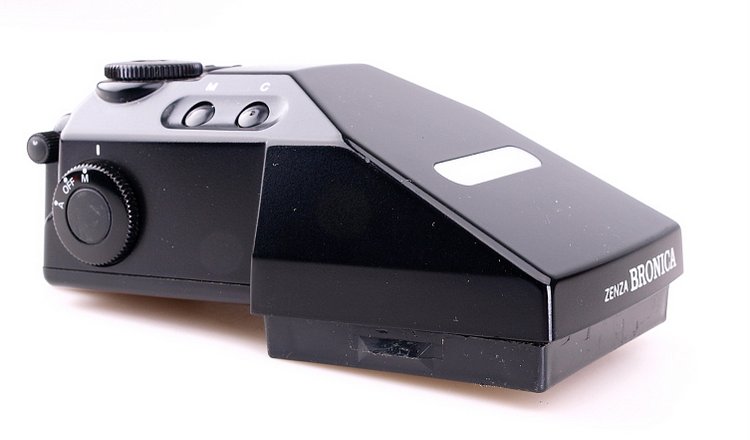

This AE-III finder is been designed to provide the user with automatic exposure (AE) control in combination with eye-level viewing of laterally correct and erect image. Switching from aperture-priority TTL automatic exposure to manual exposure control is also possible , as well as switching from full-area average metring to spot metering, which means versatile exposure determanition are possible to match all manner of photographic conditions.
Specs:
Type : Eye-level finder with laterally correct and upright image and built-in exposure meter. ( also incorporates adjustable eyepiece system)

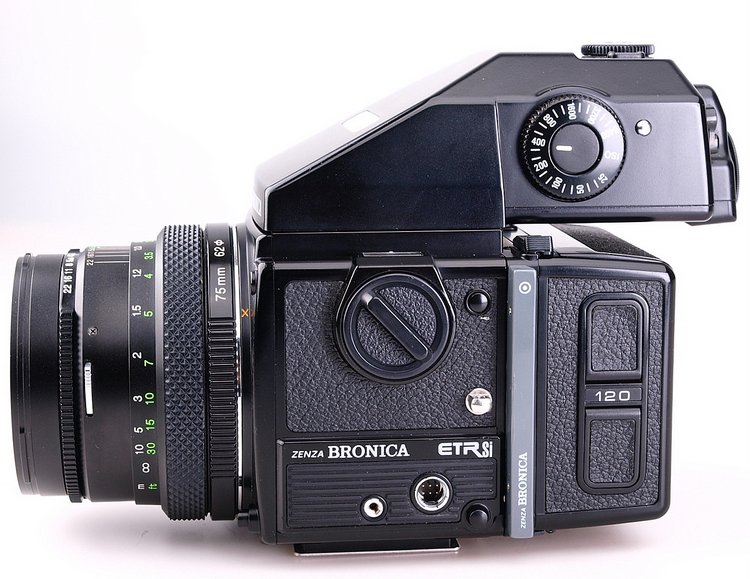

Attachable models: Zenza Bronica ETRSi, ETRS and ETR-C ( aperture-priority AE and manual exposure control) Zenza Bronica ETR and ETR-C ( manual exposure control only).
Maginfication: 0.75x with standard 75mm lens at infinity and zero diopter correction.
Finder field: 40.6×51.6mm. ( 96%x94%)
Eyepiece diopter correction: Continuously variable ; standard eyepiece lens can be further corected with optional plus eyepiece lens and minus eyepiece lens.
Range w/standard eyepiece : +0.5 to -2.5 dptr. Continuously variable.
Exposure measuring system: TTL full aperture exposure measurements ;full-area average measurements swithcable to spot measurements. 3 silicon photocell light receptors ; two cells exclusively for average measurements and one cell exclusively for spot measurements.
Shutter coupling range: 32 seconds to 1/500 second in 1/12th steps.On Auto 8 seconds to 1/500 second , with shutterspeed dial on camera body, on Manual.
Exposure measuring range : EV1 to EV19 ( ISO 100)
Film speed coupling range :ISO25 to 6400. ( DIN15 to 39)
Exposure compensations: ±2EV ( in 1/3 rd step increments)
Finder indications: LCD 7-segment number and letter indications ( automatic backligth illumination). On AE: Illuminated display of shutter speed and AE On Manual: Illuminated display of shutter speed and M. Other displays : AE lock (L) /Spotmetering (O)/Average metering () / Exposure compensation + or – / Error ;Err / Outside the coupling range – Outside the metering range : flickering at 2Hz.
AE lock: Possible in AE mode only. Locks for 1 min.
Spotmetering area : 100mm circlein center of finder area.
Dimensions : 69x135x51mm
Weigth : 345 grams.
Out of stock
Condition:
Optical : clean inside no mold no marks.
Mechanical: All works as it shoold do, no damage on the outside.
Weight | 0.5 kg |
---|---|
Dimensions | 15 × 15 × 15 cm |
Condition exterior | |
Condition mechanical | |
Condition optical |
